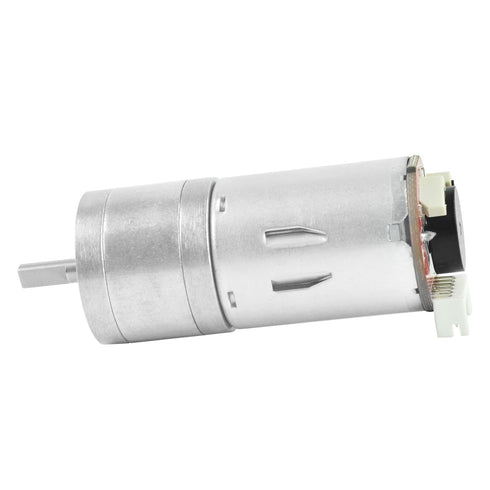

2Pcs 12V 100RPM 1:45 Gear Motor with Encoder DC Gear Ratio D Shaft Metal Encoder Gear Motor Silver for Smart car/Robot

2Pcs Gear Motor with Encoder DC 12V 100RPM Gear Ratio 1:45 D Shaft Metal Encoder Gear Motor Silver for Smart car/Robot RC Model DIY Engine

2Pcs 12V 100RPM 1:45 Gear Motor with Encoder DC Gear Ratio D Shaft Metal Encoder Gear Motor Silver for Smart car/Robot

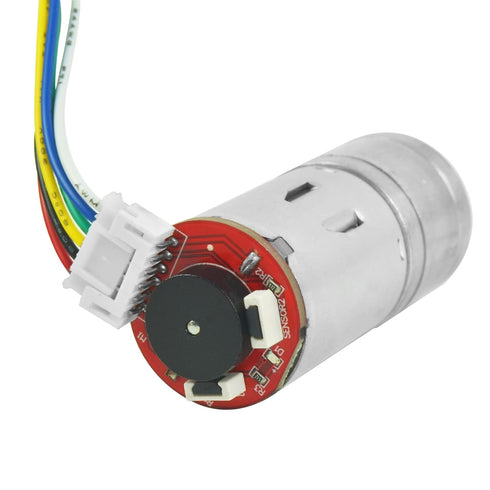

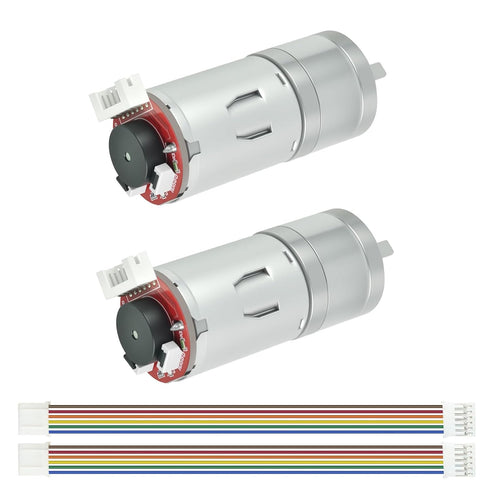

Specifications: Material: MetalColor: Silver Rated Voltage: 12V Voltage Range: 6-24V No-load Speed: 130RPM Load speed: 100RPM No-load Current: 80mA Rated Current: 0.25A Stall Current: 3A Rated Torque:1.80kg.cm Stall Torque: 6.0kg.cm Reduction Ratio: 1:45 Outer diameter dimensions: 25mm Shaft length: 12mm D-Length 8mm Shaft diameter: 4mm diameter D-shaped shaft Gross Weight: Approx. 100g Encoder Cable Length: 19cm/7.48inch Features: Type: AB two-phase incremental magnetic Hall encoder Line speed: basic pulse 11 PPRx gear reduction ratio Supply voltage: DC 3.3V/DC5.0 Basic functions: built-in pull-up shaping resistor, direct connection to microcontroller Interface type: PH2.0 (standard connection line) Output signal type: square wave AB phase Response frequency: 100KHz Basic pulse number: 11 PPR Number of magnetic ring trigger poles: 22 poles (11 pairs of poles) Package Includes: 2 X DC 12V 463RPM Gear Motor with Encoder 2 X PH2.0 color double-ended cable 6P length 19CM/7.48inch

Brand: XiaoR Geek

power plant, robot model, app, 2pcs gear, gear motor, car robot, motor, encoder, gear, diy, electric motors, model Remote & App Controlled Vehicle Parts Power Plant & Driveline Systems Electric Motors & Parts Complete Motors

Key Features

• ✅ Product type: DC Gear motor with AB two-phase Hall effect encoder; Rated Voltage: 12V; No-Load Speed: 130RPM; No-Load Current: 80mA; Rated Torque: 1.8kg.cm;

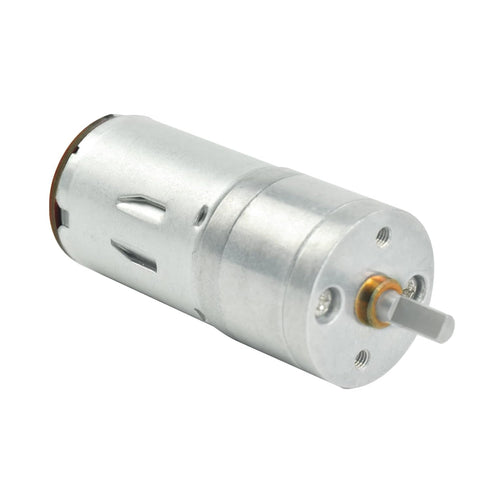

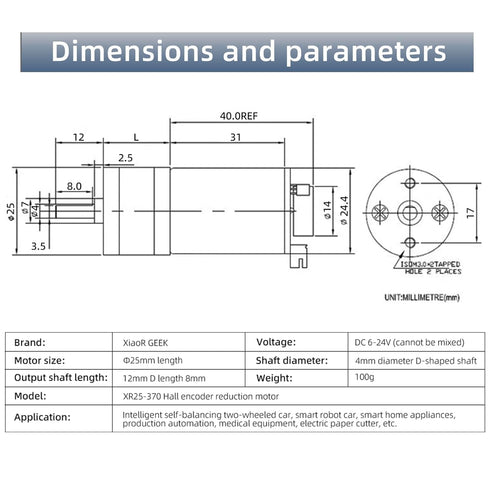

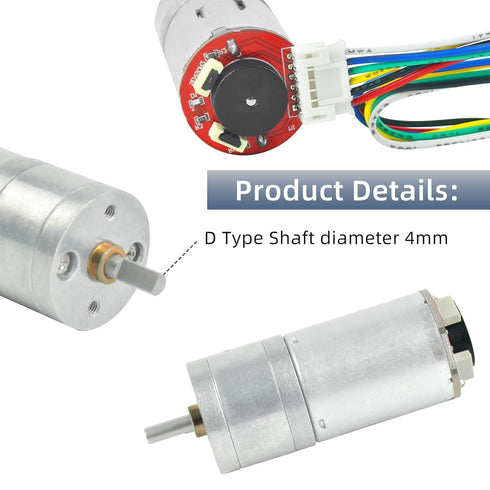

• ✅ Main Body Dimensions: 70 x 25mm / 2.76in x 0.984in (L*D); Out Shaft Dimensions: 12x 4mm / 0.472 x 0.1575in (L*D) with 8 x 1mm / 0.315 * 0.0394inches flat cut off; Mounting Hole Size: M3;

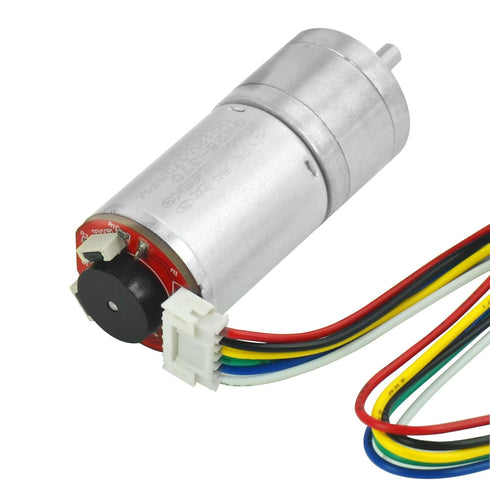

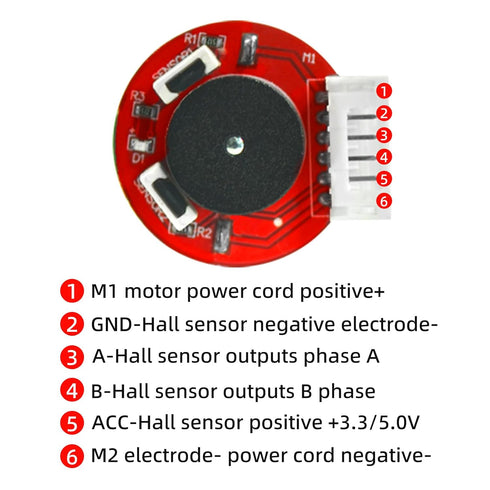

• ✅ Motor wire: The encoder features 6 color-coded leads (each 7.48 inches/19 cm long) with dual-ended 6-pin female headers (0.1" pitch).
• ✅ Durable Construction: Featuring an all-metal gearbox, this motor offers high abrasion resistance and strong load capacity, effectively protecting the motor body and extending its service life.
• ✅ Application: Suit for Projects Such as Robotics, RC Car Model, Custom Servo, Arduino/Raspberry Pi/Jetson nano and 3D Printers, DIY Engine Toy.

Product Details

• ✅ Material Type: Metal
• ✅ Included Components: Motor
