20x4 2004 LCD Display Module with IIC/I2C/TWI Serial Interface Adapter (Yellow Green/2004)

20x4 2004 LCD Display Module with IIC/I2C/TWI Serial Interface Adapter (Yellow Green/2004)

20x4 2004 LCD Display Module with IIC/I2C/TWI Serial Interface Adapter (Yellow Green/2004)

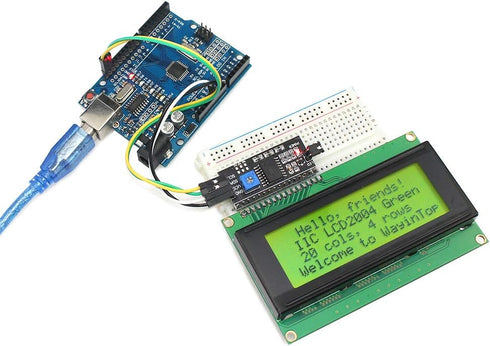

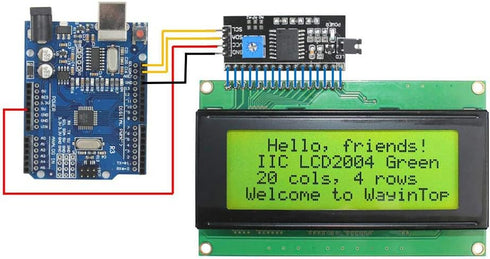

WayinTop: We aim to make your work Easier & Funnier! The LCD2004 with an I2C port is developed to solve the multiple IOs problem. It is also simple to handle. It has only two bidirectional data lines, a serial data line and a serial clock one. Specification: Display: 4 lines x 20 characters Backlight: yellow green with blcak character color Pin Definition: VCC/ GND/SDL and SCA Contrast Adjust: Potentiometer Backlight Adjust: Jumper Default Address: 0x27 Working Voltage: 5V How to wire: GND GND; VCC VCC; SDA A4; SCL A5 Application: Used to display Characters, letters and Numbers Package Included: 1 x 2004 LCD Display Module Yellow Green 1 x IIC/I2C/TWI Serial Interface Adapter

Key Features

• ✅ 20x4 LCD Display With this shield, you can display whatever you want by programming the for Arduino board. Therefore, this is a perfect choice to make your project more interesting and vivid! Totally display 20 characters in one row, 4 rows can display 80 characters.

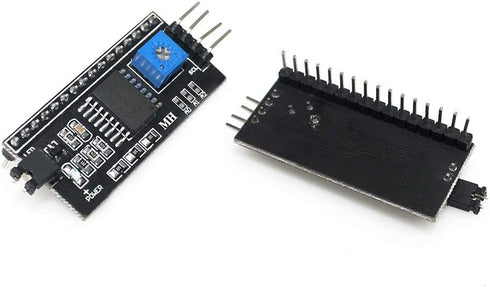

• ✅ IIC Interface Adapter No need to buy the adapter extra, this kit contains a IIC/I2C/TWI Serial Interface Adapter, with witch you can start your project at any time.
• ✅ Easy to Use Less I/O ports are occupied, only four - VCC, GND, SDA (serial data line), SCL (serial clock line). Address of the module: 0x27

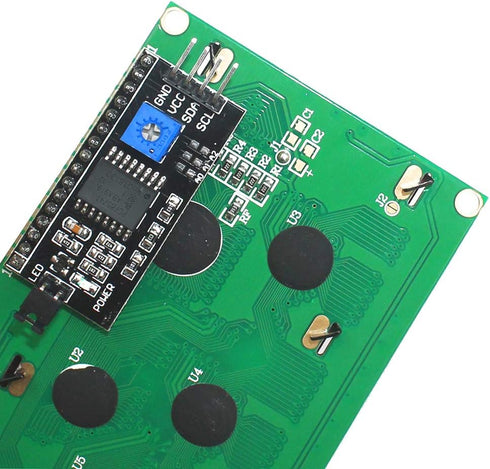

• ✅ Support IIC Interface It only takes two I/O port thus saving more for other usages. You can adjust the contrast by the potentiometer at its back. If you don t want the back light, you can also unplug the jumper cap at the LCD back.
• ✅ Widely Applications LCD display module based on the popular controller, works great with for Arduino and other micro-controllers.
