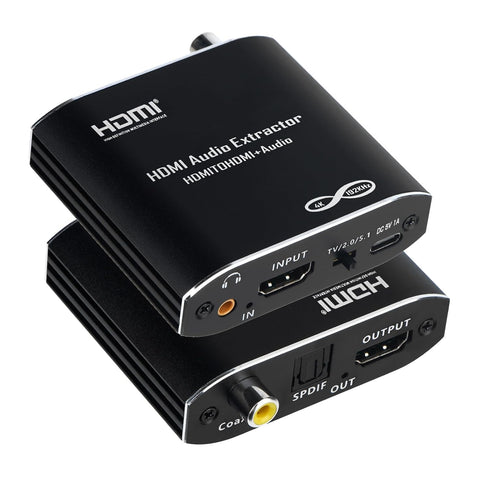

2026 4K@30Hz 3.5mm 3D Dolby Upgrade HDMI Audio Extractor Splitter, Convert HDMI to Optical S/PDIF Coaxial Aux Supports

2026 Upgrade HDMI Audio Extractor Splitter, Convert 4K@30Hz HDMI to Optical S/PDIF Coaxial 3.5mm Aux Supports 3D Dolby Digital DTS for Speakers, Amplifier, Headphones Not Support ARC eARC or CEC

2026 4K@30Hz 3.5mm 3D Dolby Upgrade HDMI Audio Extractor Splitter, Convert HDMI to Optical S/PDIF Coaxial Aux Supports

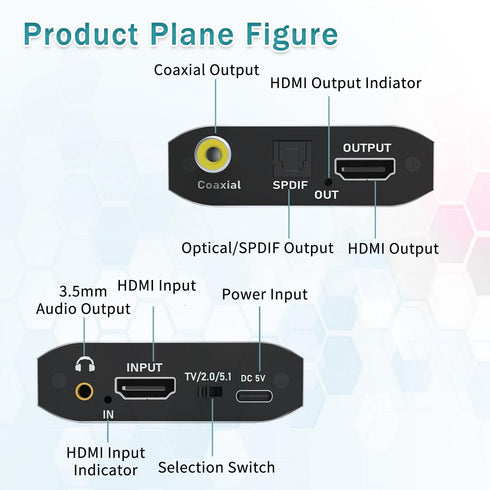

Product Features: 1.One HDMI input convert to one HDMI+Audio (SPDIF+3.5mm+ Coaxial) output. 2.One audio support: SPDIF +3.5mm +Coaxial Audio Output. 3.Input Resolution : Up to 4K@30Hz,3D, HDMI 1.4, HDCP 1.4. 4.HDMI to achieve the synchronization of audio signal separation. 5.There are PASS/2.0CH/5.1CH three kinds of audio mode options. 6.LED indication: When source of sink is working, LED relative to is light. 4K@30Hz High Resolution: Supports 4Kx2K@30Hz video resolution and 3D stereoscopic imaging technology, bringing you an immersive visual experience. (Both the input and output devices must support 3D.) 3 Audio EDID Settings: TV Mode: SPDIF/Coaxial and 3.5mm audio format depends on TV EDID (3.5mm audio port does not support 5.1) 2.0 ch Channel Stereo Mode: SPDIF/Coax and 3.5mm output stereo audio. (Only support uncompressed audio such as LPCM.) 5.1 ch Mode: SPDIF/Coax output 5.1 channel audio, no 3.5mm output. (Support compressed audio such as DTS, Dolby Digital.) PLUG & PLAY: 4K HDMI Audio Separator is plug and play, just connect your HDMI device and charger, no extra drivers needed. Effectively synchronize and separate audio, provide high quality audio and video transmission, make your life easier and more colorful. How to get 5.1ch audio: If you cannot get 5.1ch audio using the HDMI Audio Separation function, first turn on the 2.0ch/5.1ch/TV mode switch on the product to switch the audio output format to 5.1ch mode or TV mode. If you still cannot get audio even after setting it to 5.1ch mode or TV mode, check the HDMI input source and set it to the appropriate audio input format.

Brand: Wonlyus

pdif coaxial, supports dolby, upgrade, cec electronics, aux supports, arc, not support, arc earc, 5mm, convert 30hz, hdmi optical, support arc Electronics Home Audio Home Audio Accessories Distribution Selector Switch Boxes

Key Features

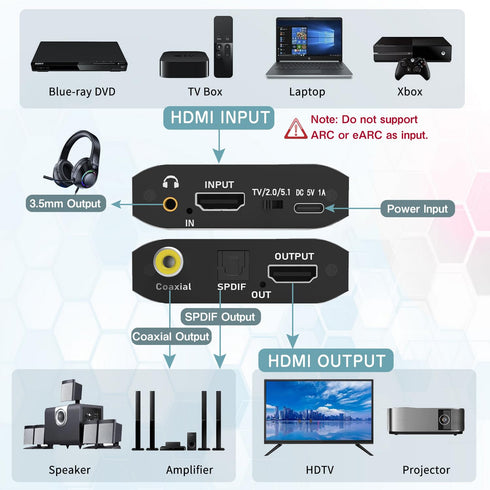

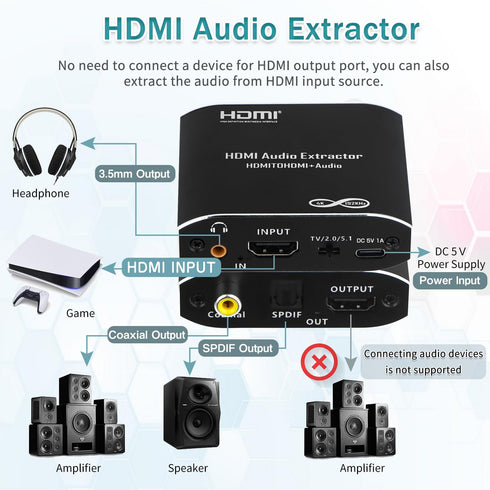

• ✓ 4K@30Hz HDMI Audio Extract Splitter: This HDMI Audio Extractor can split Input HDMI Source to one HDMI Output Source with Optical Toslink SPDIF Audio, Coaxial and 3.5mm Aux Stereo Audio Jack output. Extract the audio signal from the HDMI input source to your soundbar, speaker and other Audio Device. Do not support ARC or eARC AS HDMI input port and CEC function

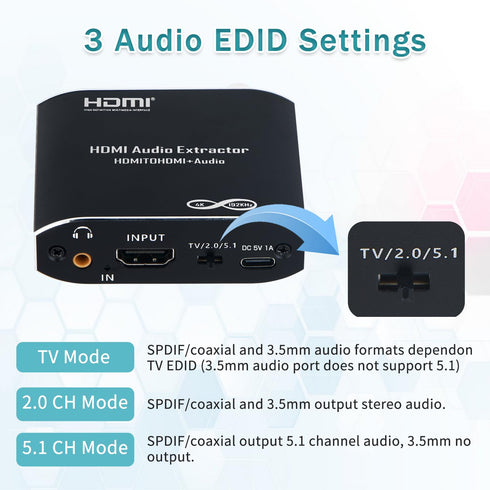

• ✓ Three EDID Audio Mode settings: Support 2.0CH, 5.1CH and Pass Audio Modes. Ther 3.5mm Aux Support 2.0ch, The Toslink SPDIF and Coaxial output support 2.0ch and 5.1ch audio. When you set at 5.1ch mode, Please make sure that the HDMI input source contain 5.1ch audio information, otherwise it will output 2.0ch PCM audio
• ✓ High Performance: Compatible with HDMI 1.4 and HDCP 1.4, it provides ultra-high resolution up to 4K@30Hz RGB 8 bit and 1080P@60Hz.Dot Support HDR It supports 192kHz 12bit audio, as well as high-quality audio formats such as DTS-HD/ LPCM7.1/ DTS/ Dolby-ACNot Support Always Dolby Digital plus, Dolby Atmos, Dolby-trueHD
• ✓ Without Signal Loss: Resolution max support up to 4K@30HZ/ 3D/ 1080P/ 720P. Support vedio color format: 24bit/deep color 30bit,36bit with sync sound; HDMI v1.4,HDCP 1.4
• ✓ Wide Device Compatibility: Suitable for various HDMI source devices like Amazon Fire Stick, Roku, Chromecast without dedicated audio output as well as Blu-ray/ DVD/ HD player, cable/satellite box, Apple TV, PS3/4, PS4 Pro, Xbox, PC/laptop, HD camera, HD DVR, etc. Please make sure that your HDMI input source is not over 4K@30Hz RGB 8Bit and use 19+1 28AWG HDMI Cable

Product Details

• ✓ Included Components: HDMI Audio Extracor
