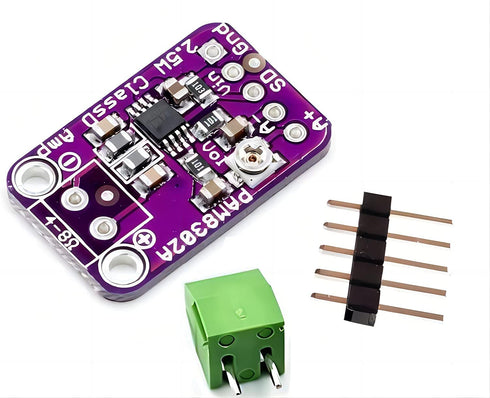

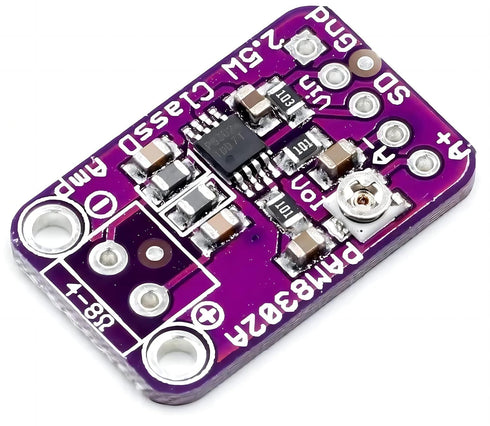

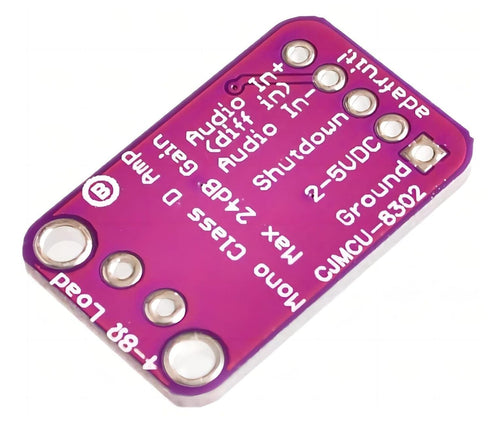

Overview This super small mono amplifier is surprisingly powerful - able to deliver up to 2.5 Watts into 4-8 ohm impedance speakers. Inside the miniature chip is a class D controller, able to run from 2.0V-5.5VDC. Since the amp is a class D, its very efficient (over 90% efficient when driving an 8 speaker at over half a Watt) - Making it perfect for portable powered projects. It has built in thermal and over-current protection but we could barely tell it got hot. There's even a volume trim pot so you can adjust the volume on the board down from the default 24dB gain. This board is a welcome upgrade to basic "LM386" amps! The A+ and A- inputs of the amplifier go through 1.0uF capacitors, so they are fully 'differential' - if you don't have differential outputs, simply tie the Audio- pin to ground. The output is "Bridge Tied" - that means the output pins connect directly to the speaker pins, no connection to ground. The output is a high frequency 250KHz square wave PWM that is then 'averaged out' by the speaker coil - the high frequencies are not heard. All the above means that you can't connect the output into another amplifier, it should drive the speakers directly. Features Output Power: 2.5W at 4 , 10% THD, 1.5W at 8 , 10% THD, with 5.5V Supply 50dB PSRR at 1KHz Filterless design, with ferrite bead + capacitors on output. Fixed 24dB gain, onboard trim potentiometer for adjusting input volume. Thermal and short-circuit/over-current protection Low current draw: 4mA quiescent and 1uA in shutdown mode

Key Features

• ✅ PAM8302 2.5W This super small mono amplifier is surprisingly powerful. Capable of providing up to 2.5 watts to 4-8 ohm impedance speakers
• ✅ 5.5V power supply
• ✅ Because the amplifier is class D, it is very efficient and has built-in thermal and overcurrent protection

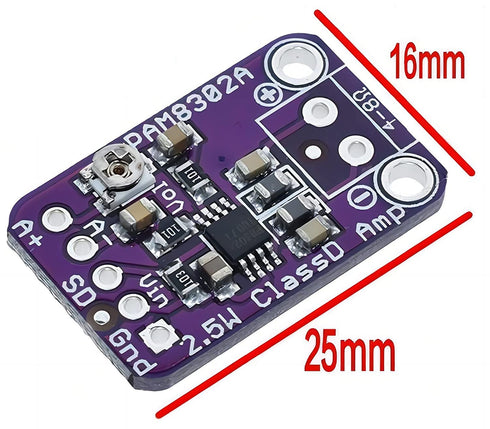

• ✅ Dimensions: 25mm 16mm
• ✅ Because the amplifier is Class D, it is extremely efficient (over 90% efficiency when driving 8 speakers at over half a watt) - making it ideal for portable powered projects
