150W 48V 48V 100~240V Din Rail Mount Power Supply Output AC-DC Industrial Power Adapter AC Input Din-Rail Switching

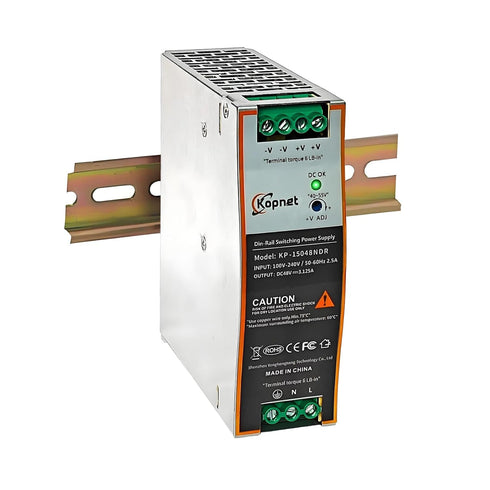

150W 48V Din Rail Mount Power Supply 48V Output AC-DC Industrial Power Adapter 100~240V AC Input Din-Rail Switching Power Supply with Over Load/Temperature Short Circuit Protection

150W 48V 48V 100~240V Din Rail Mount Power Supply Output AC-DC Industrial Power Adapter AC Input Din-Rail Switching

This economical Din rail power supply adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed narrow in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 100VAC to 240VAC and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current. The Industrial Din Rail Power supply is designed with metal housing that enhances the unit's power dissipation. With working efficiency up to 89%, the AC-DC power adapter can operate at the ambient temperature between -20 and 70 under air convection. lt is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV EN60950-1, and etc.) make it a very competitive power supply solution for industrial and commercial applications. Are you still troubled by unstable equipment operation? Industrial DIN rail power supplies are here to solve your worries! Highly Efficient and Stable: Utilizing advanced technology, with wide voltage input and stable, reliable output, providing continuous and stable power supply for your equipment. Safe and Reliable: Built-in multiple protection mechanisms, including overvoltage, overcurrent, and short-circuit protection, ensuring safe operation of your equipment. Easy Installation: DIN rail mounting saves space, is convenient and quick, and allows for easy integration into your systems. This industrial DIN rail power supply features a hollowed-out design with an all-metal casing, crafted with precision for exceptional durability and robustness. * The product utilizes 2.0mm thick aluminum alloy on the sides and back, while the top and bottom are made of 0.6mm thick perforated galvanized steel, providing excellent protection for internal components. * With a fanless design, it operates quietly and without noise. Heat dissipation is achieved naturally through the ventilation holes on the top and bottom. Please avoid using the product in enclosed cabinets without a cooling system. * The Din Rail Clip is fixed on the back of the power adapter for easy installation. The DIN-rail power supply utilizes high-quality components and incorporates multiple built-in protection mechanisms to ensure safe, stable, and reliable operation of your equipment. Featuring a wide voltage input design, it can adapt to various voltage environments. Equipped with high-capacity capacitors, full-power transformers, and other premium components, it ensures stable output voltage and sufficient output power. The AC to DC Power Supply utilizes high-quality circuit boards and undergoes rigorous quality testing to ensure superior product reliability. Due to its stability, safety, and reliability, the induatrial power adapter is widely used in industrial control, automated production, industrial lighting, security monitoring, communication equipment, and other fields. The Industrial Power supply supports Short-circuit protection. When an accidental short circuit occurs between the positive and negative terminals of the output, or when a load equipment fault causes a short circuit, the protection mechanism will be activated. Protection mode: Output turn off, and recover after power supply restart. It need to cut off AC input to recover. The Industrial AC-DC Power adapter supports Over-temperature. When the temperature of the din rail power supply exceeds 70 degrees Celsius, the protection mechanism will be initiated. Protection mode: Output turn off, and recover after power supply restart. It need to cut off AC input to recover. The Din rail Mount Power supply supports Overload. When the total load power exceeds 105% of the rated power, the protection mechanism will be activated Protection mode: Hiccup mode, automatically recovers after abnormal load conditions are removed. It don'r need to cut off AC input.

Brand: Hapidot

adapter 100, adapter, input, switching, 100, supply 48v, converters, rail switching, power supply, temperature short, short, 150w Electronics Power Accessories Power Converters

Key Features

• ✓ [150W 48V Industrial Power Supply] The Industrial 48V Power Supply is a universal DC power supply with max 3.2A output. No Fan design, it can work at wide range temperature -20C to 70C (-4F to 158F) and offers quiet, reliable and efficient power for your solution.
• ✓ [100~240V AC Input] The Din Rail AC-DC power adapter use universal 100~240V 50/60Hz AC input or 127~370V DC Input.

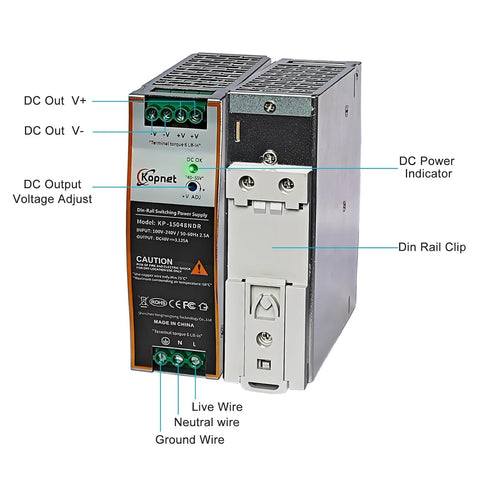

• ✓ [Output Voltage Adjustable] The Din rail Mount Power Converter supports voltage adjust, range is 42~56V DC.

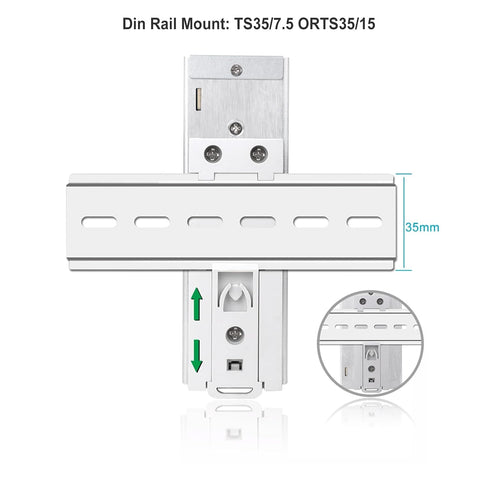

• ✓ [Din-Rail Mount Installation] The Din Rail AC-DC Converter fits standard TS35/7.5 or TS35/15 Rail.

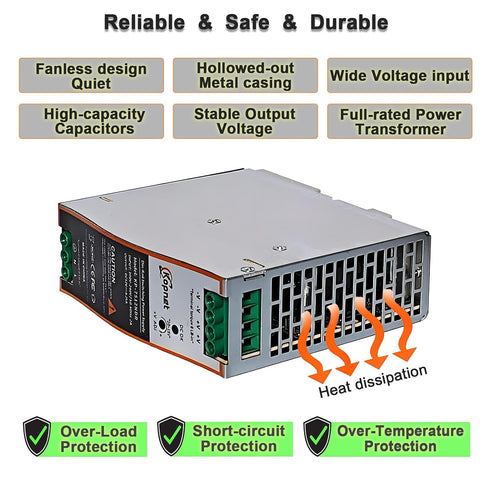

• ✓ [Comprehensive Protection] The 48V DC Switching Power Supply offers short circuit, over-load and over-temperature protection, ensuring reliable and secure power for any industrial application.

Product Details

• ✓ Item Weight: 1.1 Pounds
• ✓ Power Source: Corded Electric
