100 Pack RJ45 Connector - Cat 6 Pass Through Unshield Modular Crimp Network Plug for Cat6, Cat6e, Cat5

100 Pack Cat 6 Pass Through RJ45 Connector Unshield Modular Crimp Network Plug for Cat6, Cat6e, Cat5, Cat5e UTP Solid or Stranded Ethernet Cable

100 Pack RJ45 Connector - Cat 6 Pass Through Unshield Modular Crimp Network Plug for Cat6, Cat6e, Cat5

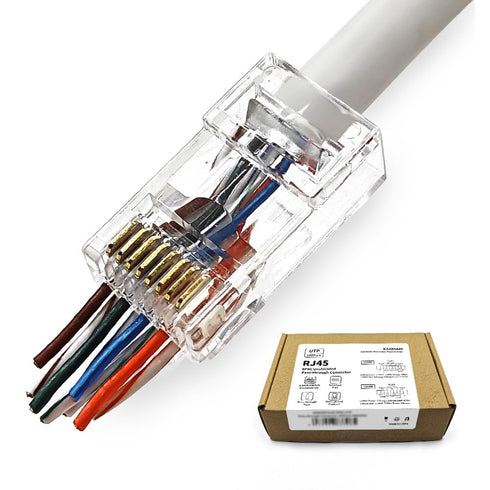

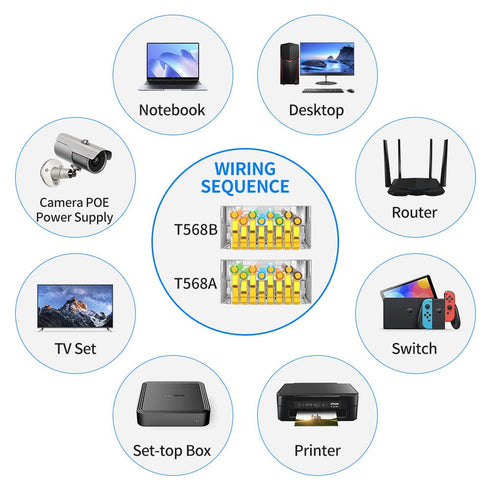

1, Put the network cable into the stripping port of the crimping tool and rotate it to breaking the cable outer jacket. 2, Taking off the cable outer jacket and inspecting the wires to make sure the wires insulation are not damaged. 3, Cutting down the plastic isolation cross skeleton. Untwisting the cores to make the cores straight enough. 4, Arranging the wires to the required sequence(NORMALLY 568B sequence). 5, Trim the tips of the wires with a crimping tool to make tips neat. Pushing the wires into the connector and pass through the rabbet. 6, Further checking whether each wires are in the right sequence. 7, Put the wired crystal RJ45 end into the cable clamp. 8, Crimping and testing to finish. If you want to make with cable strain relief boot, PLEASE FUSH THE BOOT INTO THE CABLE BEFORE CUTTING OFF THEC CABLE JACKET. Checking the crimping slots of the cable crimp tool to make sure they are intact and without defects before crimping. Further checking whether each wires are reaching the deepset and right positing is very important to increase success rate. NOTE: Please comfirm the insulation diameter of your cable before purchase(0.93-1.1mm). 1), For new DIY maker, we suggest to choose pass-through feature RJ45 connector which is more easy to use. Pass-through desigh can let the cores inserted through the connector, which can simplify the crimping process and increase the success rate. 2), If you want to connect the ground wire with shielded Ethernet cable, please choose shielded type.

Key Features

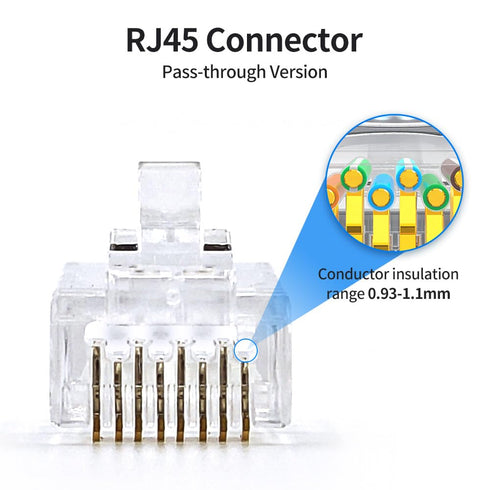

• ✅ Cat 6 RJ45 Pass Through Standard: Connector terminates unshielded twisted pair cable for making a custom-length Cat 6 Ethernet cable with 23-24AWG round or flat stranded and solid wire, backward support Cat5e and Cat5 Ethernet cable for insulated conductors diameter from 0.93 to 1.1mm and an outside diameter of up to 6.3mm.

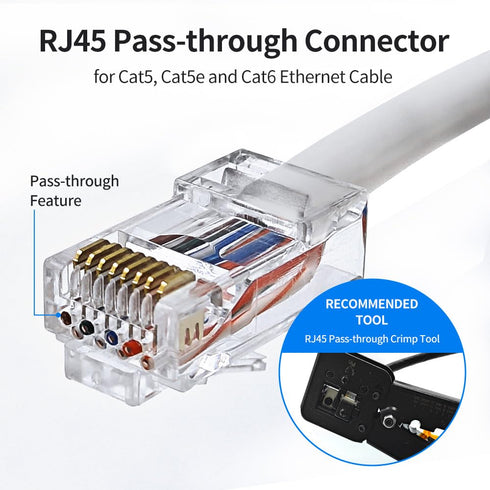

• ✅ Pass Through Style: Simply push the managed conductors through the openings in the pass thru RJ45 connectors and easier for checking the wiring consequence which can crimping the connector for a faster termination with less effort.

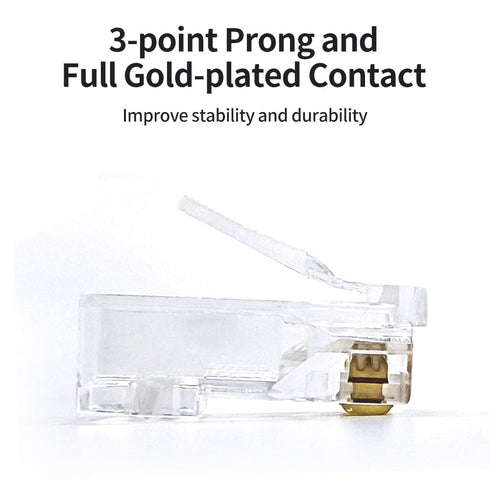

• ✅ Three Prong Full Gold Plated Contact: 8P8C high quality contact increasing the contact area between the contacts and the cores to further enhance the connection stability and durability.
• ✅ Cat 6 Performance: Supporting Cat 6 for Gigabit Ethernet channel for wired Ethernet or PoE application, backwards compatible with Cat5e and Cat5 cables.
• ✅ Quantity Options: Choose from different quantity options to suit your specific needs. 25 pack, 50 pack and 100 pack are available.
