10 Pack Cat7 Cat6A Pass Through Shielded RJ45 Connector Modular Network 50 Gold-Plated Plug for Cat 6, Cat 6A, Cat 7

10 Pack Cat7 Cat6A Pass Through Shielded RJ45 Connector Modular Network 50 Gold-Plated Plug for Cat 6, Cat 6A, Cat 7 and Cat 8 with Strain Relief Boots

10 Pack Cat7 Cat6A Pass Through Shielded RJ45 Connector Modular Network 50 Gold-Plated Plug for Cat 6, Cat 6A, Cat 7

1, Put the cable strain relief boot pass into the cable. 2, Put the network cable into the stripping port of the crimping tool and rotate it to taking off the cable outer jacket. 3, Twisting the braided shielding round(DO NOT cut it off), and separating 4 pairs conducting wires. 4, Cutting off the AL-foil shielding. Then, separating the conducting wires and making the wires straight enough. 5, Arranging the wires to the required sequence(NORMALLY 568B sequence). 6, Trim the tips of the wires with a crimping tool to make tips neat and reserve length. 7, Push the wires pass the load bar and double check the wiring sequence. 8, Push the loaded load bar into the connector and let all the wires pass the connector to make sure the load bar reach the end of the connector. 9, Put the wired crystal RJ45 end into the cable clamp and crimping. 10, Take the braided shielding and wrap it around to the connector buckle. 11, Bend the buckle and closing it tightly. 12, Push the strain relief boot to fit tightly with the connector. For Ethernet cable which is 22AWG wires or insulation diameter larger than 1.3mm, we suggest insert the wires separately to the load bar. For example, you can insert 2 wires at a time into the corresponding holes and dividing into 4 times to improve accuracy.

Key Features

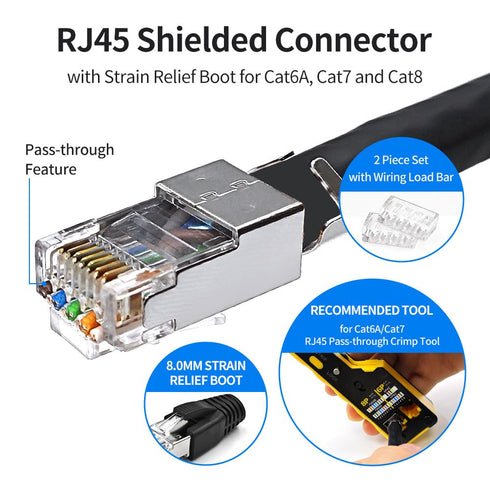

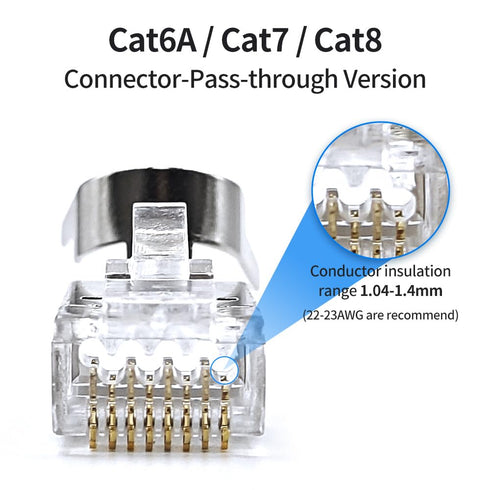

• ✅ Shielded RJ45 Standard: Connector terminates shielded twisted pair cable for making a custom-length Cat 6A, Cat7 or Cat 8 Ethernet cable with 22-23AWG round stranded and solid wire, backward support Cat6 Ethernet cable for insulated conductors diameter from 1.04 to 1.4mm.

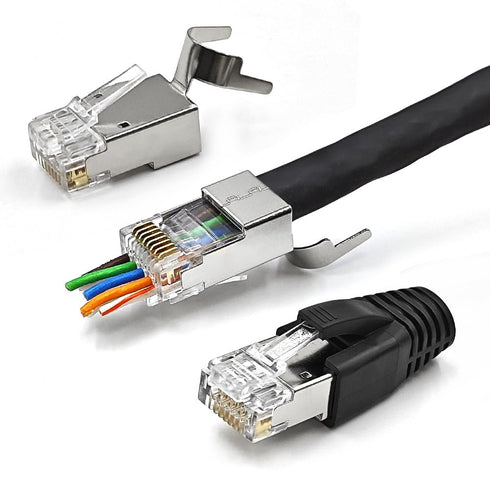

• ✅ Pass Through Style with Load Bar: Load bar can help to identify wire sequences before crimping. Since the wires are inserted through the connector and out the other side with the pass-through style, the length of the wires can be cut off more flexibly when you feed the wire into the load bar.

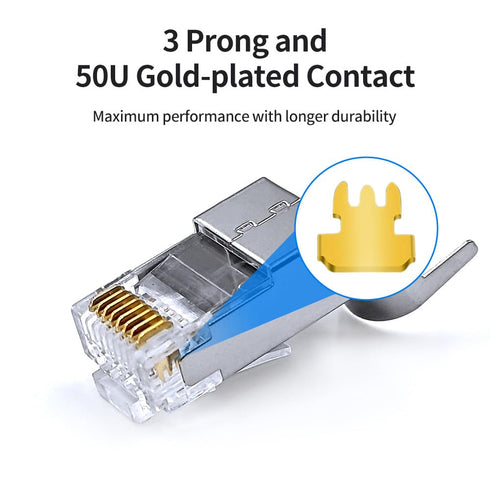

• ✅ Three Prong 50 Gold Plated Contact: High quality contacts can increase the contact area and enhance conductivity. Supporting Cat8 40 Gigabit Ethernet channel for wired Ethernet or PoE application, backwards compatible with Cat7, Cat6A and Cat6 cables.

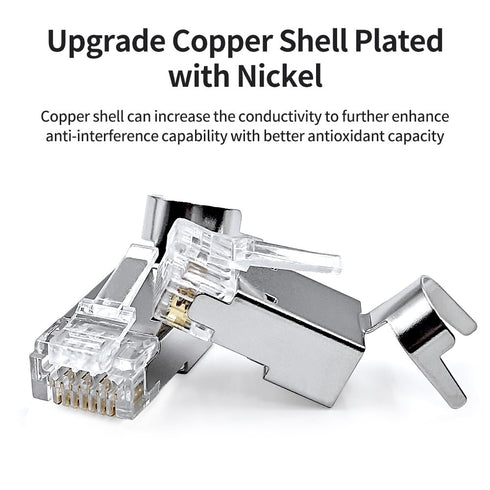

• ✅ Nickel Plated Copper Shell: Upgrade copper case connect to the ground wire helping to reduce electrostatic interference and improve connection stability. The copper shell also improves the durability of the connector.
• ✅ Strain Relif Boot: Package include 10*RJ45 connector, 10*load bar and 10*Black Strain Relif Boot. The boots support cable overall diameter up to 8.0mm.
• ✅ TIPS: Even though the connector have the buckle to connect the ground wire for shielded cable, we suggest to use copper foil tape to wrap the ground wire for helping the connector connect to the ground wire more stably.
