0.95" Inch 7 65K SSD1331 96 64 51 STM32 HiLetgo Pin Colorful SPI OLED Display Module * Resolution for Arduino

HiLetgo 0.95" Inch 7 Pin Colorful 65K SPI OLED Display Module SSD1331 96 * 64 Resolution for Arduino 51 STM32

0.95" Inch 7 65K SSD1331 96 64 51 STM32 HiLetgo Pin Colorful SPI OLED Display Module * Resolution for Arduino

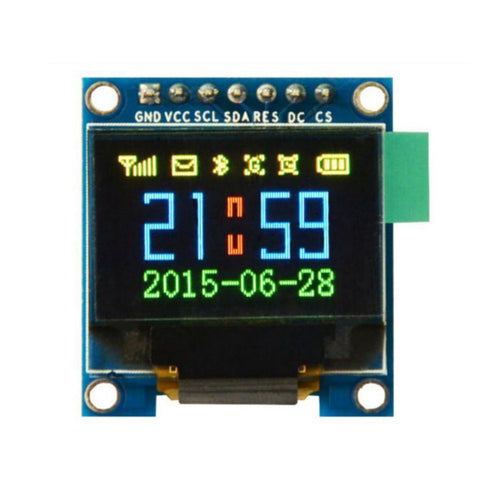

Pin Description 1.GND-Gound 2.VCC-Positive Voltage(2.8-5.5V) 3.SCL-Clock Line 4.SDA-Data Line 5.RES-Reset 6.DC-Data/Demand 7.CS-Chip Select The use of OLED technology offers the following advantages for flat-panel displays? 1. A simplified manufacturing process compared to TFT-LC 2. Self-emitting light, in contrast to the required backlight for TFT-LCD 3. High luminosity 4. Lightweight and thin 5. Capable of wide viewing angles 6. Low operating voltage and power consumption 7. Quick response 8. Wide range of operating temperatures (-40c to 85c) How Does OLED Emit Light? OLED?s basic structure consists of organic materials positioned between the cathode and the anode, which is composed of electric conductive transparent Indium Tin Oxide (ITO). The organic materials compose a multi-layered thin film, which includes the Hole Transporting Layer (HTL), Emission Layer (EML) and the Electron Transporting Layer (ETL). By applying the appropriate electric voltage, holes and electrons are injected into the EML from the anode and the cathode, respectively. The holes and electrons combine inside the EML to form excitons, after which electroluminescence occurs. The transfer material, emission layer material and choice of electrode are the key factors that determine the quality of OLED components. Package Included: 1* SSD1331 0.95" Inch 7 Pin Full Color 65K SPI OLED Display Module

Brand: HiLetgo

resolution, resolution arduino, computers accessories, colorful, accessories computer, stm32 electronics, computer, spi, computer components, electronics, arduino stm32, oled Electronics Computers & Accessories Computer Components Single Board Computers

Key Features

• ✓ Main Driver:SSD1331
• ✓ Resolution:96*64
• ✓ 0.95 inch Colorful OLED
• ✓ Draw speed is responsive
• ✓ Easy to Set Up: Easy to work with and requires no soldering for the header pins

Product Details

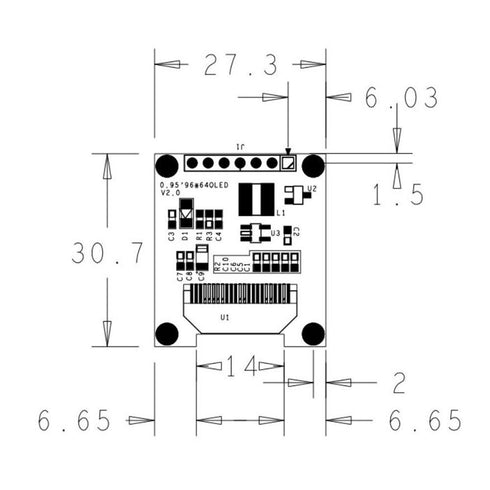

• ✓ Package Dimensions: 3.74 x 2.24 x 0.75 inches
• ✓ Item Weight: 0.317 ounces
