(0.91 128x32) SparkFun Qwiic OLED Display in.

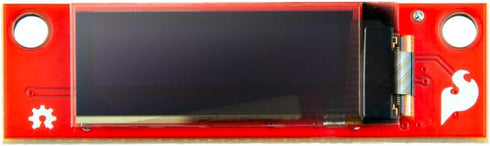

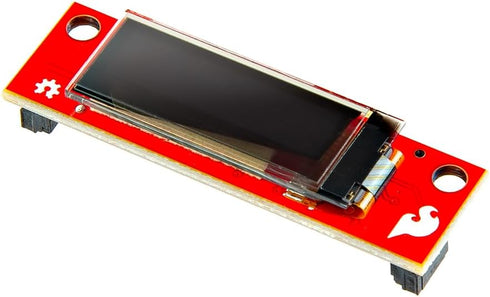

SparkFun Qwiic OLED Display (0.91 in., 128x32)

(0.91 128x32) SparkFun Qwiic OLED Display in.

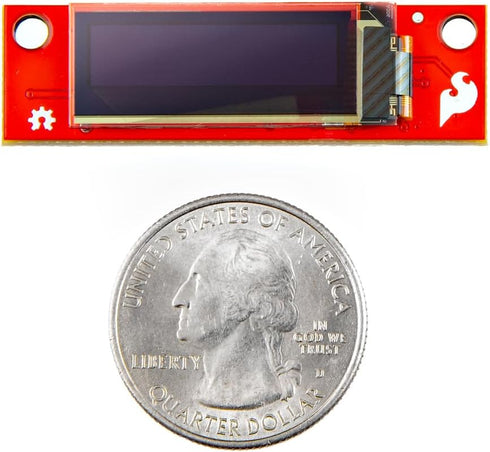

The SparkFun Qwiic OLED Display can display up to four lines of text and features 128x32 pixels in a small 0.91in. (diagonal) frame. As an OLED, this display does not have a backlight layer (unlike LCDs); therefore, its thinner, consumes less power, and has higher contrast. Thanks to an I2C command structure, the board's firmware maintains speed by updating only the part of the screen that changes. Computer graphics use this concept with "Dirty Rectangles" or "Bit blit" operations. This version of the Qwiic OLED display includes two vertical Qwiic connectors on the back of the board to mount the board easily and keep the wires inside the enclosure. Note that the two mounting holes have also been moved to one side of the board. The SparkFun Qwiic Connect System is an ecosystem of I2C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you cant hook it up wrong.

Brand: SparkFun

computers accessories, qwiic, accessories computer, computer, sparkfun qwiic, computer components, electronics, display 128x32, sparkfun, accessories, oled display, qwiic oled Electronics Computers & Accessories Computer Components Single Board Computers

Key Features

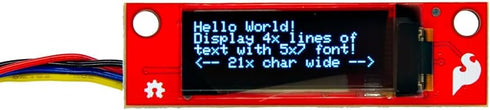

• ✓ The SparkFun Qwiic OLED Display can display up to four lines of text and features 128x32 pixels in a small 0.91in. (diagonal) frame.
• ✓ Thanks to an I2C command structure, the board's firmware maintains speed by updating only the part of the screen that changes. Computer graphics use this concept with "Dirty Rectangles" or "Bit blit" operations.

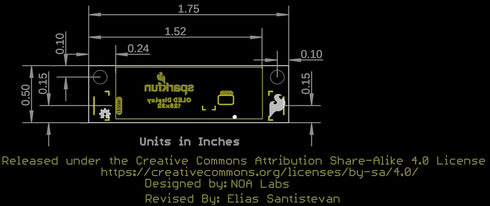

• ✓ Features: Operating Voltage: 3.3V via Qwiic Connector, Display IC: SSD1306, Screen Size 128px x 32px, Monochrome Blue-on-Black, Communication Protocols: I2C, I2C Address: 0x3C, 2x Qwiic Vertical Connectors, Built-in I2C 4.7k Pull-Up Resistors, I2C Jumpers for Pull-Up Resistors, Board Dimensions: 1.75in. x 0.50in. (44.45mm x 12.7mm) Weight: 3.25g.

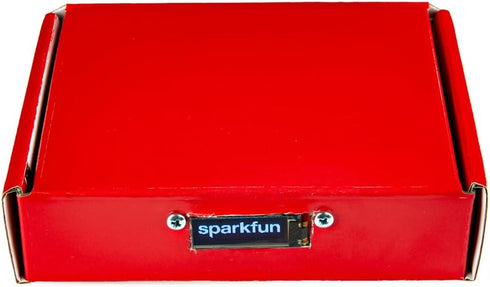

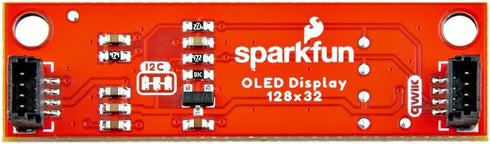

• ✓ This version of the Qwiic OLED display includes two vertical Qwiic connectors on the back of the board to mount the board easily and keep the wires inside the enclosure. Note that the two mounting holes have also been moved to one side of the board.

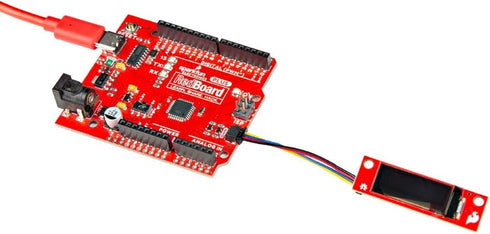

• ✓ The SparkFun Qwiic Connect System is an ecosystem of I2C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you cant hook it up wrong.

Product Details

• ✓ Product Dimensions: 1.77 x 0.47 x 0.39 inches
• ✓ Item Weight: 0.176 ounces
