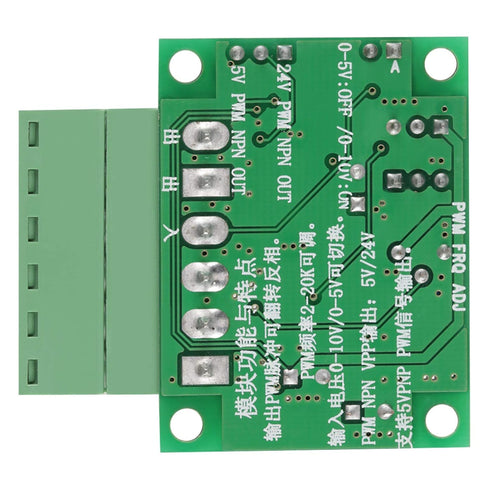

0-5V/0-10V Converter Module, Analog Input Voltage to PWM 2KHZ-20KHZ

0-5V/0-10V Converter Module Analog Input Voltage to PWM 2KHZ-20KHZ

0-5V/0-10V Converter Module, Analog Input Voltage to PWM 2KHZ-20KHZ

Our shop is committed to providing high-quality industrial products to global buyers. Let customers buy high-quality products and improve the quality of work is our pursuit. We work very hard to understand the tools people need in industry, DIY and home, and provide excellent products to make people's work better. Because we can provide customers with high-quality products, we are sincerely happy when customers praise our products and say that they have solved their problems. This is the motivation for our work. FTVOGUE is a registered brand of industrial and home products. We insist on "provide the best quality products and the most considerate service" as our brand philosophy. We strive for perfection in every process of producing our products, and we are always listening to our customers. From drills to ground clips, from night lights to speakers, we're always on your way to finding quality products for you. Visit the Store 1 Convert 0-5V or 0-10V analog input voltage into 0-100% PWM signal. The maximum PWM signal frequency is 20KHZ within the range of 2KHZ-20KHZ. The factory default is 2KHZ. The default function is a 2KHZ PWM signal of 0-10V to 0-100%. The customer can adjust the potentiometer on the board to set the corresponding output frequency according to the demand. 2. PWM signal and voltage can be output in direct or inverse ratio (i.e. positive phase output or negative phase output) Choose one from two. 3. There are two kinds of PWM signals. PNP-PWM output and NPN-PWM output respectively. PNP-PWM output can only be 5V level, NPN-PWM output can be 5V and 24V level. When NPN-PWM signal is output, it supports common cathode connection and common anode connection, with two levels of 5V and 24V. When 24V is output, 24V is required for power supply When PNP-PWM is output, the level can only be 5V. It can only be connected with common cathode, and connected to MCU, etc. 4. The output PWM signal frequency is adjustable from 2KHZ-20KHZ. There are 11 gears, corresponding to 2KHZ, 4KHZ, 6KHZ and 8KHZ respectively. The maximum frequency is 20KHZ. The default frequency is 2KHZ 5. The module input power supply is 7-30V. The current is greater than 200MA. The recommended power supply is 15-30VDC. When outputting 24V PWM signal, the power supply needs 24VDC power supply 6. An external potentiometer interface is reserved. PWM output can be set by connecting the potentiometer, and the external potentiometer for adjustment needs to be customized.

Key Features

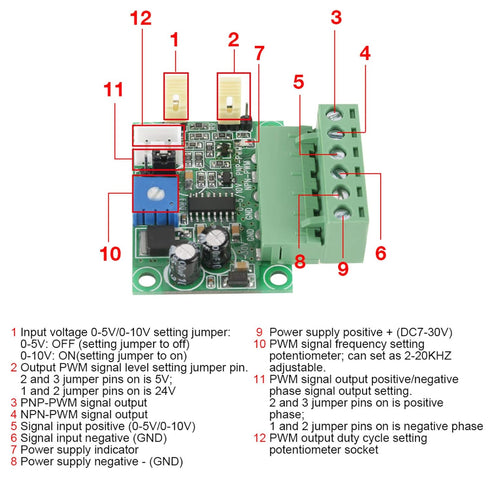

• ✅ Main Function: This module is designed to convert a 0-10V into a 2kHz PWM output. You can easily set the output frequency by adjusting the potentiometer to fit your needs.
• ✅ PWM Options: The module offers two types of PWM outputs: PNP-PWM, which provides a 5V level output, and NPN-PWM, which supports both 5V and 24V levels.
• ✅ Flexible Ratios: The PWM and voltage outputs can be configured for either a direct ratio (positive phase output) or an inverse ratio (negative phase output), giving you added versatility.
• ✅ Frequency Range: This pulse module operates within a frequency range of 2kHz to 20kHz, with a maximum frequency of 20kHz and a default minimum of 2kHz.
• ✅ Customer Commitment: We are dedicated to providing you with high-quality products and the best customer experience. If you're not completely satisfied, please feel to reach out to us at any time.

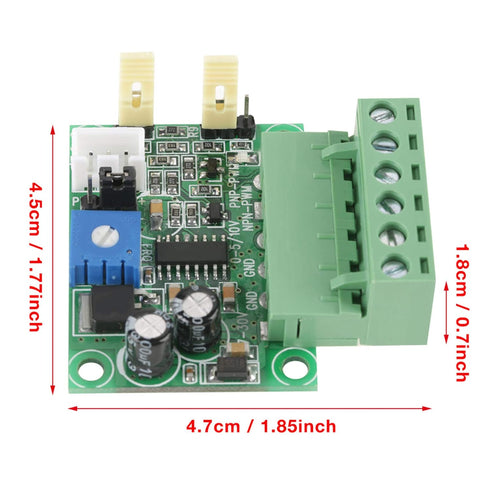

✅ Product Dimensions: 1.97 x 1.97 x 0.79 inches; 0.71 ounces
